PositionalT is a fully validated Geometric Dimension and Tolerance calculator used to calculate the available Positional Tolerance between mating Holes and Pins or Fasteners, the default setting will divide the available tolerance between the Holes and Fasteners, leaving .001" clearance as the default distribution; the user can override this distribution to meet specific design needs.
The application calculates the diameters and tolerances available at MMC, LMC and Nominal. One of the key features of PositionalT is the calculated Virtual Conditions, a RED color indicates a potential interference fit at the tolerance extreme condition. (Total Tolerance and/or Virtual Condition will turn RED if interference is calculated.
When you are deep into a mating fit study and need to know standard drill sizes, select the Drill Index menu to browse the full spectrum of drill sizes from 1/64 up to 1 inch. (includes metric and letter drills)
Feature list:
- 19 calculations with a single click
- MMC, LMC and Nominal tolerances
- Resultant and Virtual Conditions
- Over-ride distribution of tolerance

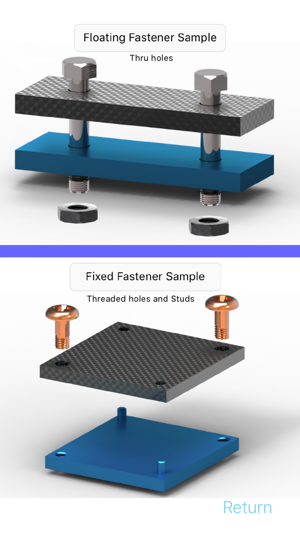

- Floating and Fixed Fastener analysis
- Inch or Metric units
- Drill Index
- Screen capture for collaborative work
- Positional analysis in the field
The key number related to True Position is the Virtual Condition; the clearance between the virtual hole and pin is vital. Plastics can be pushed to a line to line fit, but metal parts may not assemble as easy in this condition. Additionally, components that are assembled using automated methods may not assemble with a line to line fit.
