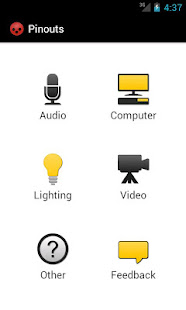

Pinouts is the complete collection of common audio / video / lighting / computer and other connector pinouts.

Audio Connectors

❖ TRS Jack (Balanced) / TS Jack (Unbalanced)

❖ DB25 Analog and AES Breakouts (Tascam / Digidesign and Yamaha)

❖ RCA - Phono

❖ XLR Balanced / XLR Unbalanced

❖ Tec Pro (Clear Com) Comms - circuit and headset

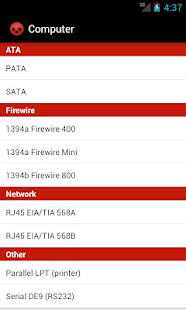

Computer Connectors

❖ Serial-ATA

❖ Parallel-ATA

❖ Firewire 1394a and 1394b

❖ RJ45 - TIA/EIA 568A / TIA/EIA 568B

❖ Parallel LPT (Printer)

❖ Serial DE9 (RS232)

❖ ATX Power / Molex Power / SATA Power

❖ Magsafe (Mac Book power connector)

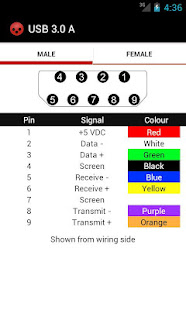

❖ USB A / B / Micro / Mini / 3.0A

Lighting Connectors

❖ DMX 3 and 5 pin

❖ Scroller

Pinouts(圖2)-速報App

❖ Din 8 pin (analog control)

❖ ILDA (Laser Connector)

❖ Lectriflex / Harting

❖ RCA - Composite / Component

❖ Socapex

Video Connectors

❖ S-video

❖ Scart

❖ VGA

❖ DVI

❖ HDMI

Other

❖ Apple Dock (ipod - iphone - ipad)

❖ Cresnet

❖ Playstation Audio Visual

❖ XBOX 360 Audio Visual

❖ Wii Audio Visual

Additional features available in Pinouts Pro:

✓ No Adverts

✓ Search feature

Pinouts(圖3)-速報App

https://market.android.com/details?id=com.embu.pinouts

If you would like to request a new pinout or report a bug please use the in app feedback form, otherwise please leave a comment.
