Cancer Predictor

價格:免費

更新日期:2019-04-05

檔案大小:6.0M

目前版本:1.0

版本需求:Android 4.0.3 以上版本

官方網站:mailto:mobassirhossen94@gmail.com

Cancer Predictor(圖1)-速報App

Ovarian Cancer Predictor:

521 cancerous and non-cancerous patients record were collected from different diagnostic centers (in Bangladesh). Then a structured questionnaire was used containing details of ovarian cancer risk factors including age, menopause end age, problem during pregnancy, first sex age, any infection in genital area, affected by ovarian cancer, abortion, pregnancy, BMI, menopause after 50, food habit, obesity, excessive alcohol, late menopause, early menopause, hormone therapy, exercise, previous exposure to other sexually transmitted infections (STIs), marital status, genetic risk, outdoor activities and affected by any cancer before based on the previous studies. After pre-processing, data was clustered using K-means clustering algorithm for identifying relevant and non-relevant data to ovarian cancer. Then relevant data were used to develop this system, there are 6 algorithms applied in the relevant data and on 70-30% training and testing split the performance of the models were evaluated.

performance of Each Algorithm:

Cancer Predictor(圖2)-速報App

Decision Tree (J48): accuracy = 80.2548 %

Random Forest: accuracy = 80.2548 %

Logistic Model Trees (LMT): accuracy = 82.1656 %

Cancer Predictor(圖3)-速報App

Naïve Bayes: accuracy = 75.7962 %

Logistic Regression: accuracy = 80.8025 %

Support Vector Machines (SVM): accuracy = 80.8917 %

Cancer Predictor(圖4)-速報App

Risk Score Generation Process:

Below is the table which was generated from the dataset that shows each and every features percentage/distribution of developing ovarian cancer (yes/no)

click here : https://github.com/mobassir94/Cancer-Predictor-Android-App-/blob/master/risk%20score.JPG

Cancer Predictor(圖5)-速報App

From the above table manual rating was given to each sub feature based on their impact on developing ovarian cancer. For example the feature “Menarche Starts Early” has 3 features "early, late and normal", we can see that 64% time patients has developed ovarian cancer whose menarche starts “early” and only 35% patients haven’t developed ovarian cancer whose menarche starts early, so we give higher score to sub feature “early” because it is more likely “risky symptom” of a patient.

Here is the Manual Risk scoring Table:

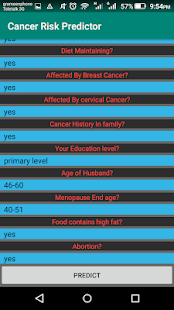

1st column: "Menarche start early" Early - 2 Normal - 1 Late - 3

Cancer Predictor(圖6)-速報App

2nd column: "Oral Contraception" Yes – 3 No - 1

3rd column: "Diet Maintain" Yes - 1 No - 2 4th column: "Affected by Breast Cancer" Yes - 3 No - 1 5th column: "Affected By cervical Cancer?" Yes - 3 No - 1 6th column: "Cancer History In family?" Yes - 2 No - 1 7th column: "Education?" Illiterate - 3 Primary level - 1 Graduated - 1 8th column: "Age of Husband" Below 30 - 2 31-45 – 1 46-60 – 4 Above 60 - 3 9th column: "Menopause End age?" Before 40 - 2 40-51 - 1 After 52 - 3 10th column: "Food contains high fat?" Yes - 3 No - 1 11th column: "Abortion?" Yes - 3 No – 1

This system then checks which sub features user selects and sums up all manual scoring rates, if total score for the patient is less than 18, the system shows “low risk”, if total score is greater than 17 and less than 25 then the system shows “medium risk” and if the total score is greater than 24 then the system shows “high risk” status of the patient. The system checks if 3 or more algorithms/classifier returns positive prediction over 50% then the system gives the patient a warning by saying “Please Consult a Doctor As Soon as Possible”

Cancer Predictor(圖7)-速報App

Cervical Cancer Predictor:

the Dataset was collected from UCI machine learning repository, i've applied Boruta (Feature selection in R) to get the relevant and Most Important Features for detecting BIOPSY.

then only 1 algorithm used for predicting cervical cancer which is Random Forest, and on a 70-30% training and testing split and using 10 fold cross validation the accuracy of this algorithm for predicting BIOPSY was 89.5349 %

Cancer Predictor(圖8)-速報App
