價格：免費
更新日期：2015-10-09
檔案大小：2.3 MB
目前版本：2.1
版本需求：需要 iOS 7.0 或以上版本。與 iPhone、iPad 及 iPod touch 相容。
支援語言：英語

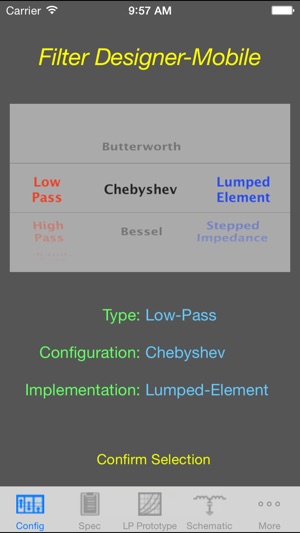

This application enables the rapid design of RF and Microwave, low-pass, high-pass, band-pass and band-stop filters in Butterworth, Chebyshev and Bessel configurations. Lumped-element, coupled line, stepped impedance or capacitive gap implementations are supported, depending on the configuration. Full schematics of each design are automatically generated, and an S-parameter analysis is performed on the filter design. S21 and S11 are presented in dB over frequency, as well as S21 phase and group delay. Although developed as a microwave application, the filter design procedure is suitable for use at lower frequencies as well.
支援平台：iPhone, iPad
