Allen & Heath Qu-Control
Description
Qu-Control release V1.9 for iOS devices.
This version is for Qu mixers running V1.9 firmware.
Qu-Control is primarily an end user interface providing wireless mobile control for the Allen & Heath range of Qu digital mixing consoles. It provides simple configuration and set-up and allows for complex control of Qu consoles for those who have no experience with audio mixing.
Qu-Control works simultaneously with Qu-Pad and the Qu mixing consoles. Complex set-up of routing, levels and processing are carried out within the mixing console or Qu-Pad by an experienced user with Qu-Control being the GUI for the end user and operation when no technical staff are required.
Typical applications could include simple source selection to more complex venue audio management.
Qu-Control supports simultaneous connection to 7 iOS devices running Qu-Control, plus an iPad running Qu-Pad which is also available free from the Apple Store.

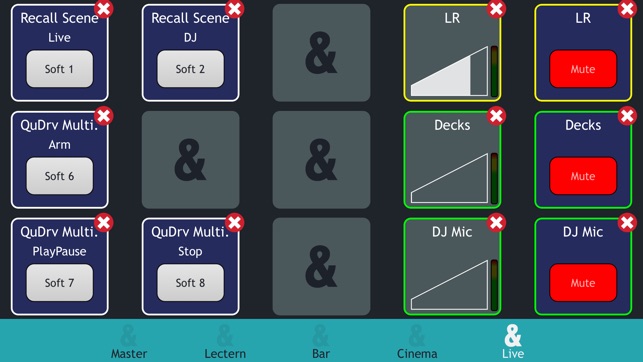

Qu-Control allows for the following control parameters of Qu mixing consoles;
- Input Faders
- LR On/Off buttons
- LR On/Off Radio buttons
- Master Faders
- Input Mutes
- Master Mutes
- Mute Groups
- Send Levels
- Send On/Off buttons
- Send On/Off Radio buttons
- Group Send Levels
- Group On/Off buttons
- Group On/Off Radio buttons
- Matrix Send Levels
- Matrix Send On/Off buttons
- Matrix Send On/Off Radio buttons
- Softkeys
Requirements
An Allen & Heath Qu-16, Qu-24, Qu-32, Qu-Pac or Qu-SB mixing console running V1.9n version firmware, with a suitable wireless router (wireless access point) connected to its Network port. The Qu mixer firmware and Qu-Control app maintenance version numbers ‘n’ do not need to be identical, for example Qu-Control V1.90 would run with Qu mixer V1.91. Refer to the Allen & Heath web site for more information and to download the latest Qu mixer firmware.
