價格：免費
更新日期：2013-10-28
檔案大小：368k
目前版本：1.3
版本需求：Android 2.2 以上版本
官方網站：http://www.inex.co.th
Email：tech@inex.co.th
聯絡地址：Innovative Experiment Co.,Ltd. 108, Sukhumvit 101/2, Sukhumvit Rd, Bangna, Bangkok 10260

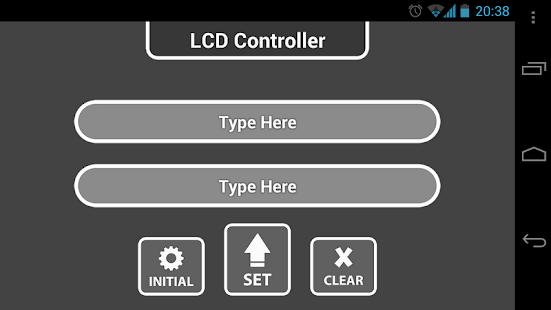

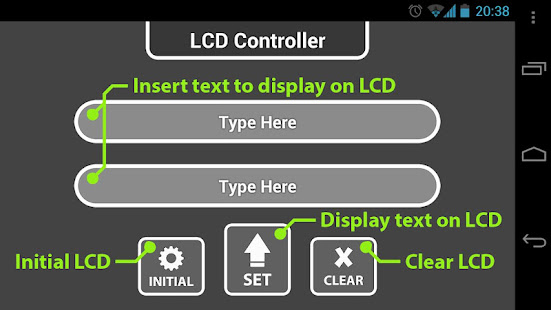

LCD Controller is an application use to control your LCD 16x2 which connect with IOIO or IOIO-Q board to display message on it. User just connect IOIO or IOIO-Q board with LCD 16x2, Press "Initial" button in application an type text as you want and then press "Set".LCD will show message as you set. Button "Clear" use for clear LCD screen.
Explain : This application use with IOIO or IOIO-Q board you can buy in www.inex.co.th
http://goo.gl/iSFHP

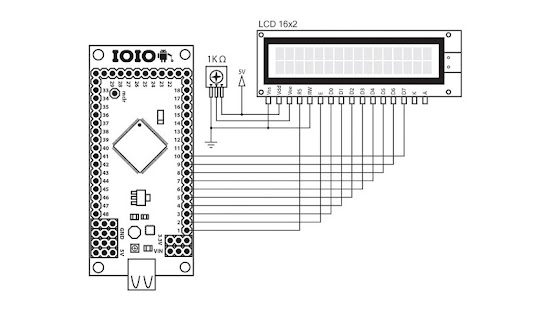

Circuit for this application
Connect IOIO or IOIO-Q board with LCD 16x2 by
Port 1 : RS
Port 2 : EN
Port 3 : D0
Port 4 : D1
Port 5 : D2
Port 6 : D3
Port 7 : D4
Port 8 : D5
Port 9 : D6
Port 10 : D7
See more detail from www.tpemagazine.comon issue 27
Download source code from
http://goo.gl/OCuAT3
or
https://github.com/akexorcist/IOIO-LCDController/
