AngelPilot

SailTrack Limited旅遊與地方資訊2020-07-09

價格：免費

更新日期：2020-07-09

檔案大小：4.7 MB

目前版本：1.13

版本需求：macOS 10.13 或以上版本，64 位元處理器

支援語言：英語

AngelPilot facilitates the use of charts and satellite imagery to assist the small boat navigator with pilotage. It has two key components:

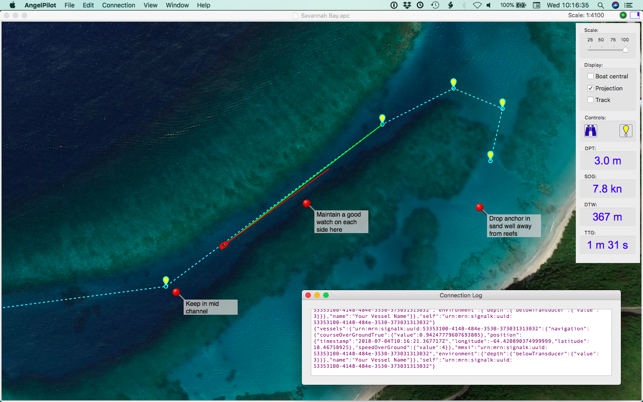

1. A chart plotter specifically designed for pilotage, with the ability to add and display detailed notes, as well as the usual navigational aids (waypoints and routes). Boat position, speed and depth of water are derived from a variety of external sources. The plotter can open charts in BSB format (KAP files), GeoTIFF files, and geo-referenced satellite images generated by the application, Waypoints, routes, and notes can be saved and exported/imported using the GPX file format.

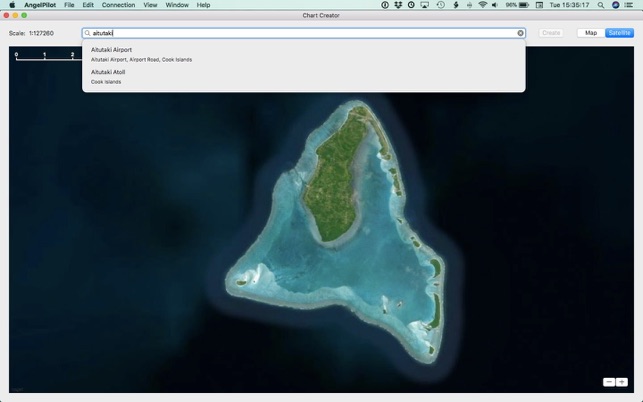

2. Chart creator: Allows the user to select satellite images and save them for loading into the chart plotter when offline. AngelPilot makes use of satellite images supplied through Apple's MapKit. Saving the images as straight Geotiff files would be in violation of Apple's terms and conditions of use, since the files could then be copied and distributed. For this reason files saved by AngelPilot use a proprietary format (.apc), and are stored encrypted with a key unique to the computer. This means that they can only be opened on the same machine as they were created.

Here are some of the features of AngelPilot:

- Optimised for pilotage using large scale charts

- Reads BSB(KAP) and GeoTIFF files including those produced by the NOAA

- Reads the excellent Antares charts (Very large scale, unofficial charts of Scottish waters produced by yachtsmen)

- Real time chart plotter displaying position, depth and speed

- Takes navigational information from NMEA messages across a network, or serial connection
