## Description ##

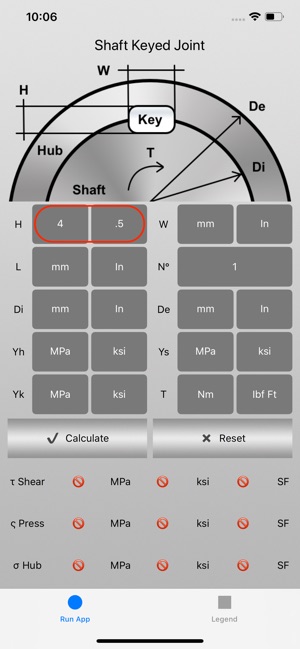

This app calculates the Shear Stress, Contact Pressure and the Max Stress in Shaft Keyed Joint. By default, a Safety Factor below 1.1 is marked red, above 1.1 green.
## Inputs ##
H = Key's Hight
W = Key's Width
L = Key's Lenght
N° = number of Keys
Di = Hub's Internal Diameter
De = Hub's External Diameter
Ys = Shaft Yield Stress
Yh = Hub Yield Stress
Yk = Key Yield Stress
T = Applied Torque
## Outputs ##
τ Shear = Key's Shear Stress
ς Press = Average Contact Pressure between Key, Shaft and Hub
σ Hub = Max Hub Stress
