價格：免費
更新日期：2018-09-26
檔案大小：24.3 MB
目前版本：1.58
版本需求：需要 iOS 8.0 或以上版本。與 iPhone、iPad 及 iPod touch 相容。
支援語言：義大利文, 英語, 西班牙文
* Sectionary is basically a cross-section dictionary for iPhone and iPad which reports geometrical and mechanical properties of common structural sections for beams and columns.
* The sections can be either edited by the user starting from pre-defined shapes or chosen by a wide library of normalized steel profiles, including European (such as IPE, HE and UPN series), US, UK, Australian and Japanese standard sections.
The provided shapes are suitable for steel and wooden sections, while further details for reinforced concrete elements will be added in the future.

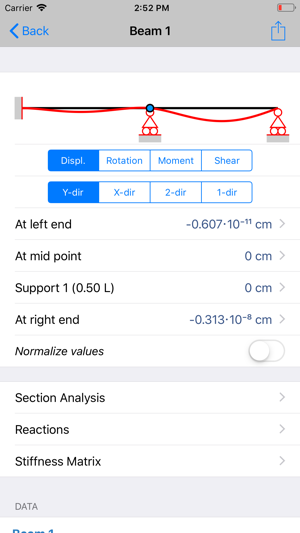

* But Sectionary is much more than a mere cross-section catalog! By means of direct integration of the Elastic Beam fourth-order differential equation, Sectionary evaluates - for a given cross-section - displacements, rotations, bending moments and shear forces along beams subjected to transversal loads with several restraint conditions (i.e. simply supported, cantilever and much more).
* Sectionary provides a wide range of geometrical and mechanical properties at the cross-section level which are useful in the structural analysis of beams and columns (i.e. centroid location, area, principal axes, static moments, second order moments, elastic and plastic modules, etc) plus several results for beams (i.e. deflections, bending moments, etc).

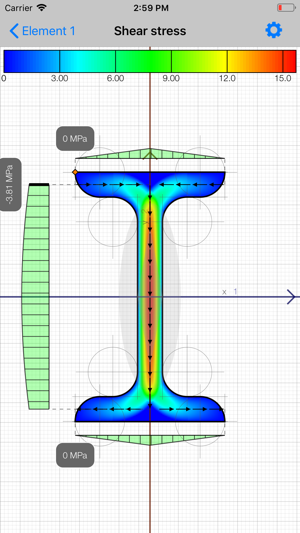

* Stress analysis is also provided. The internal forces can be directly assigned by the user or derived from the elastic-beam calculations.
* By considering section and material properties, Sectionary provides resistant bending moment and resistant shear force for steel sections according to Italian and European codes
* Sectionary is a useful reference tool for both professional users (structural engineers and architects) and students of the Statics and Mechanics of Structures courses.
If you are interested in Sectionary, may be you would like "Bolted", our new app for the design of bolted connections of steel elements according to Eurocode 3.
Check it out on the AppStore!
支援平台：iPhone, iPad
